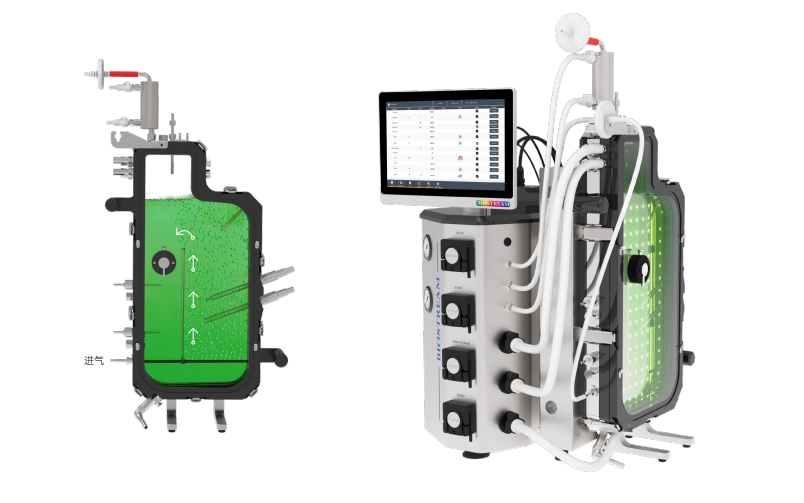

Specially engineered for the cultivation of photosynthetic bacteria and algae, this flat-panel vessel features a total volume of 2.0 L and a working volume of 0.6–1.8 L. The asymmetrical vessel head incorporates a built-in baffle designed to enhance fluid mixing and significantly reduce foam formation. Light intensity can be continuously adjusted over a wide range via percentage-based control.

Cellular and tissue culture of marine organisms—particularly microalgae and macroalgae—represents a major focus in global research. Among various secondary metabolites, halogenated terpenoids have been extensively studied. Drawing on nearly two decades of experience in phototrophic cultivation and photoreactor development, this photobioreactor embodies the culmination of our research expertise in this field.

>High-intensity LED illumination with freely adjustable light intensity (percentage-based control)
>Optimized light source distribution
>Scalable experimental capacity based on results
>Optional multi-wavelength spectrum irradiation
>Standard configuration: 16 fluorescent lamps (8W each), customizable upon request; adjustable light intensity
>Volume (Flat Panel): 2.0 L
>Temperature range: Up to 65 °C
>Controlled parameters: Temperature, illumination, pH, dissolved oxygen, antifoam/level, sampling, gas mixing, and gas flow rate

Auxiliary Equipment

>Redox potential measurement system for monitoring oxidation-reduction potential

>External analog peristaltic pump for variable-rate feeding

>Analyzers (e.g., for glucose and other metabolites)

>Exhaust gas analyzer

>Pressure measurement and control system

>Multi-gas mixing station (supports mixing of N₂,O₂, CO₂, and air for cell culture applications)

>Steam generator

>Refrigeration unit

>Sterilization equipment – Bunsen burner

>Vacuum filtration unit and air compressor supply unit

>Liquid handling module

>External balance for weight monitoring
