Marine organisms, particularly microalgae and macroalgae, have become a focal point in global research, with cell and tissue culture techniques being extensively explored. Among these, certain secondary metabolites, such as halogenated terpenoids, are widely studied.
The BioBench photobioreactor offers versatile solutions for the cultivation of algae.

Features

>11.6-inch touchscreen with adjustable positioning, allowing users to relocate the display according to their operational preferences. The interface offers intuitive visualization and enables simultaneous control of up to six bioreactors, facilitating real-time monitoring of reaction status via trend lines and parameter tracking.

>Lighting systems:Central LED light strip；Periphera LED lighting

>Available volume specifications:

Peripheral lighting models: 3.6L/2.3L, 5.0L/3.4L, 7.5L/5.0L

Central lighting models: 2.0L/1.2L, 5.0L/3.4L, 7.5L/5.0L, 13.0L/10.0L

>LED types: Warm White, Cool White, and Colored Light options are available.

>Adjustable light intensity with percentage-based control

>Broad applicability across diverse experimental conditions

>Controlled parameters: Temperature, agitation, pH, dissolved oxygen (pO₂), foam/liquid level, sampling, gas mixing, and illumination

>Temperature range:

Dual-layer jacketed vessel

Cooling medium (>0°C) enabled

Operational range: +5°C to 70°C

>Agitation unit:Mechanically driven；Adjustable speed: 50–1200 rpm

>Peristaltic pumps:

Standard: Three digital pumps (for base, acid, and antifoam)

Optional: Two analog pumps (for feeding)

Each pump switchable between digital/analog modes

Flow rate range: 0.013–33 mL/min

Optional Watson Marlow pump compatibility

>Flexible gas configuration: Open architecture supporting custom gas mixing strategies；Compatible with air, O₂, N₂, CO₂, and other gases

Centrally-Inserted LED Light Source

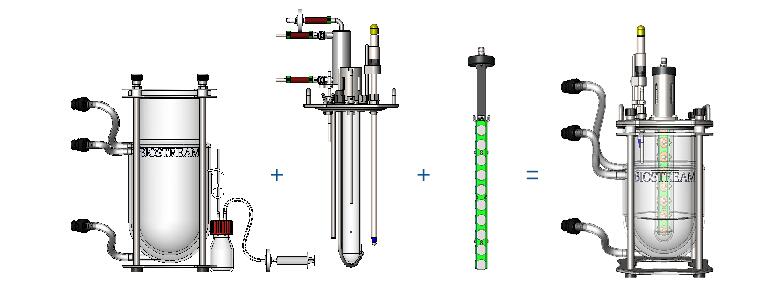

To meet the cultivation requirements of algae or photosynthetic organisms, an LED system compatible with glass vessels is available. This system can be integrated with specialized vessel lids and agitation mechanisms to upgrade conventional bioreactors into photobioreactors.
The LED light sleeve can be sterilized together with the vessel. After sterilization, the LED light module is inserted into the pre-sterilized sleeve (no additional sterilization required).
The LED illumination system can be fully controlled via the integrated controller.
