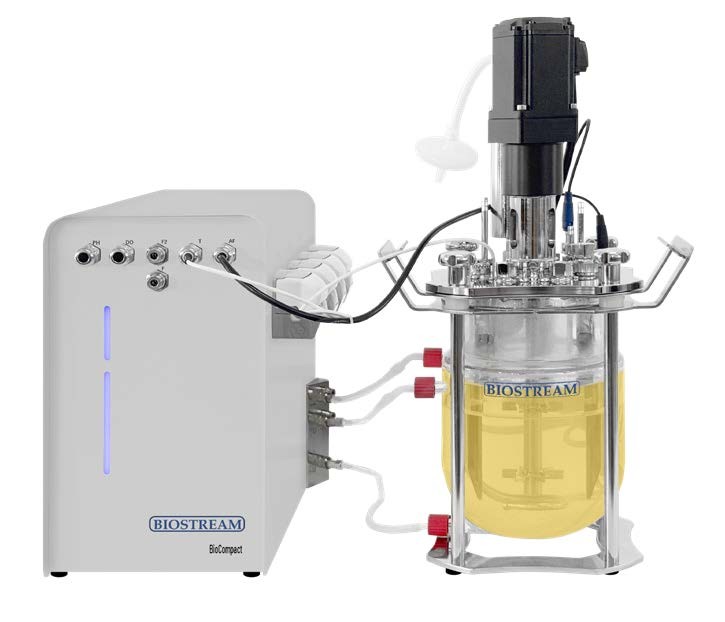

BioCompact Parallel bioreactor

Description

The BioCompact is designed for researchers who need maximum flexibility and throughput at small scale. Optimized for vessels up to 7.5 L total volume, making it ideal for early-stage process development.

Key-words
> High-throughput experimentation
> Strain optimization
> Parallel cultivation
> Space-efficient, stackable lab setups

Parallel Power for Smarter Selection

Suitable for both fermentation and cell culture, the BioCompact is the smart choice when you need high throughput, parallel cultivation, and scalable performance, all in a compact, efficient system.

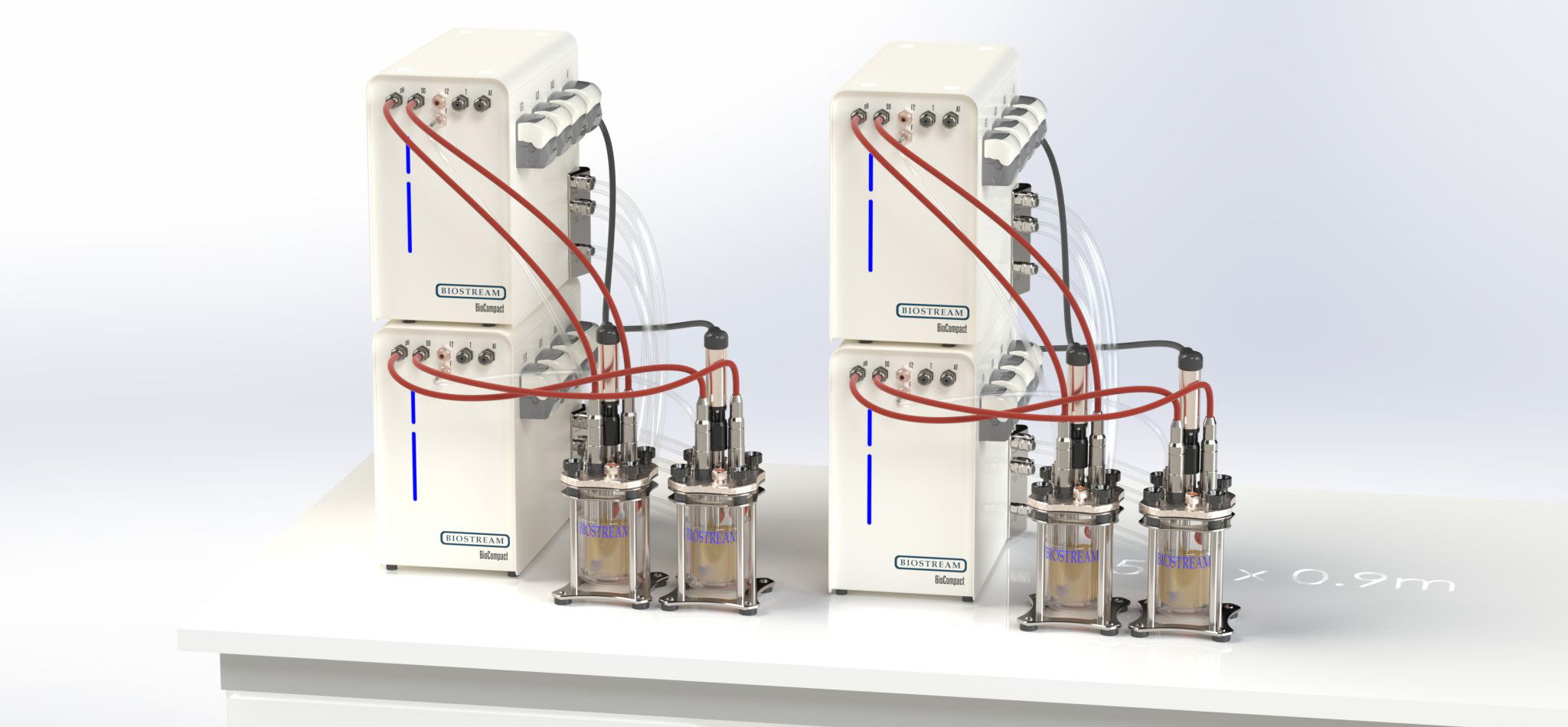

The real strength of the BioCompact lies in parallel processing. Powered by BOS 3.0, the BioCompact can run up to 32 parallel fermentations, enabling high-throughput experimentation, rapid strain screening, and efficient process optimization. Thanks to its stackable design, multiple controllers can be combined to scale parallel workflows without expanding lab space.

Specifications

		0.25L	0.5L	0.75L	2L	5L	7.5L
Vessel	Working range (L)	0.06-0.16	0.1-0.35	0.1-0.5	0.45-1.6	0.5-4	0.9-6
Vessel	Material	Borosilicated glass and 316 L stainless steel	Borosilicated glass and 316 L stainless steel	Borosilicated glass and 316 L stainless steel	Borosilicated glass and 316 L stainless steel	Borosilicated glass and 316 L stainless steel	Borosilicated glass and 316 L stainless steel
Agitation	Range	Max 1200 rpm depending on application	Max 1200 rpm depending on application	Max 1200 rpm depending on application	Max 1200 rpm depending on application	Max 1200 rpm depending on application	Max 1200 rpm depending on application
	Accuracy	±2 RPM from 0 – 1200 RPM	±2 RPM from 0 – 1200 RPM	±2 RPM from 0 – 1200 RPM	±2 RPM from 0 – 1200 RPM	±2 RPM from 0 – 1200 RPM	±2 RPM from 0 – 1200 RPM
	Impeller	2	2	2	3	3	3
	Impeller Type	Marine blade, Pitched blade turbine (upflow), Pitched blade turbine (downflow)*	Marine blade, Pitched blade turbine (upflow), Pitched blade turbine (downflow)*	Marine blade, Pitched blade turbine (upflow), Pitched blade turbine (downflow)*	Marine blade, Pitched blade turbine (upflow), Pitched blade turbine (downflow)*	Marine blade, Pitched blade turbine (upflow), Pitched blade turbine (downflow)*	Marine blade, Pitched blade turbine (upflow), Pitched blade turbine (downflow)*
Aeration	Type	Ring-Sparger, J-Sparger, micro-Sparger	Ring-Sparger, J-Sparger, micro-Sparger	Ring-Sparger, J-Sparger, micro-Sparger	Ring-Sparger, J-Sparger, micro-Sparger	Ring-Sparger, J-Sparger, micro-Sparger	Ring-Sparger, J-Sparger, micro-Sparger
Aeration	Gas overlay (headspace)*
Temperature	Sensor	Pt 100	Pt 100	Pt 100	Pt 100	Pt 100	Pt 100
	Measuring Range	0-150 °C	0-150 °C	0-150 °C	0-150 °C	0-150 °C	0-150 °C
	Accuracy Measurement (°C)	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1
	Control Range (°C)	8 °C above cooling-water inlet temperature up to 80 °C	8 °C above cooling-water inlet temperature up to 80 °C	8 °C above cooling-water inlet temperature up to 80 °C	8 °C above cooling-water inlet temperature up to 80 °C	8 °C above cooling-water inlet temperature up to 80 °C	8 °C above cooling-water inlet temperature up to 80 °C
	Accuracy Control (°C)	±0.4	±0.4	±0.4	±0.4	±0.4	±0.4
Antifoam	Measuring Range	0 – 100%	0 – 100%	0 – 100%	0 – 100%	0 – 100%	0 – 100%
Antifoam	Control	control with Antifoam pump	control with Antifoam pump	control with Antifoam pump	control with Antifoam pump	control with Antifoam pump	control with Antifoam pump
PH*	Measuring Range	0-14	0-14	0-14	0-14	0-14	0-14
	Control Range	2-12	2-12	2-12	2-12	2-12	2-12
	Control	PID control with Acid/Base pump	PID control with Acid/Base pump	PID control with Acid/Base pump	PID control with Acid/Base pump	PID control with Acid/Base pump	PID control with Acid/Base pump
	Output type	Digital	Digital	Digital	Digital	Digital	Digital
DO*	Measuring Range	0 – 300%-sat.	0 – 300%-sat.	0 – 300%-sat.	0 – 300%-sat.	0 – 300%-sat.	0 – 300%-sat.
	Control	Cascade with RPM and Airflow adjustments	Cascade with RPM and Airflow adjustments	Cascade with RPM and Airflow adjustments	Cascade with RPM and Airflow adjustments	Cascade with RPM and Airflow adjustments	Cascade with RPM and Airflow adjustments
	Output type	Digital	Digital	Digital	Digital	Digital	Digital
Optional sensors*	Type	MFM, Weight, Optical density (OD), Exhaust gas, ORP, Dissolved CO₂, Viable cell density	MFM, Weight, Optical density (OD), Exhaust gas, ORP, Dissolved CO₂, Viable cell density	MFM, Weight, Optical density (OD), Exhaust gas, ORP, Dissolved CO₂, Viable cell density	MFM, Weight, Optical density (OD), Exhaust gas, ORP, Dissolved CO₂, Viable cell density	MFM, Weight, Optical density (OD), Exhaust gas, ORP, Dissolved CO₂, Viable cell density	MFM, Weight, Optical density (OD), Exhaust gas, ORP, Dissolved CO₂, Viable cell density
MFC(lpm)	Air	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20
	O₂	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20
	N₂	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20
	CO₂	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20	2-5-10-20
	Accuracy	± 0,2% of full scale (0-10% of max flow)	± 0,2% of full scale (0-10% of max flow)	± 0,2% of full scale (0-10% of max flow)	± 0,2% of full scale (0-10% of max flow)	± 0,2% of full scale (0-10% of max flow)	± 0,2% of full scale (0-10% of max flow)
Pumps	Type	4 integrated peristaltic pumps	4 integrated peristaltic pumps	4 integrated peristaltic pumps	4 integrated peristaltic pumps	4 integrated peristaltic pumps	4 integrated peristaltic pumps
	Range	0.02-125 mU/min	0.02-125 mU/min	0.02-125 mU/min	0.02-125 mU/min	0.02-125 mU/min	0.02-125 mU/min
	Control	Digital	Digital	Digital	Digital	Digital	Digital
	Tubing Size	13# - 14# - 19# - 16# - 25#	13# - 14# - 19# - 16# - 25#	13# - 14# - 19# - 16# - 25#	13# - 14# - 19# - 16# - 25#	13# - 14# - 19# - 16# - 25#	13# - 14# - 19# - 16# - 25#
	External	Yes*	Yes*	Yes*	Yes*	Yes*	Yes*
