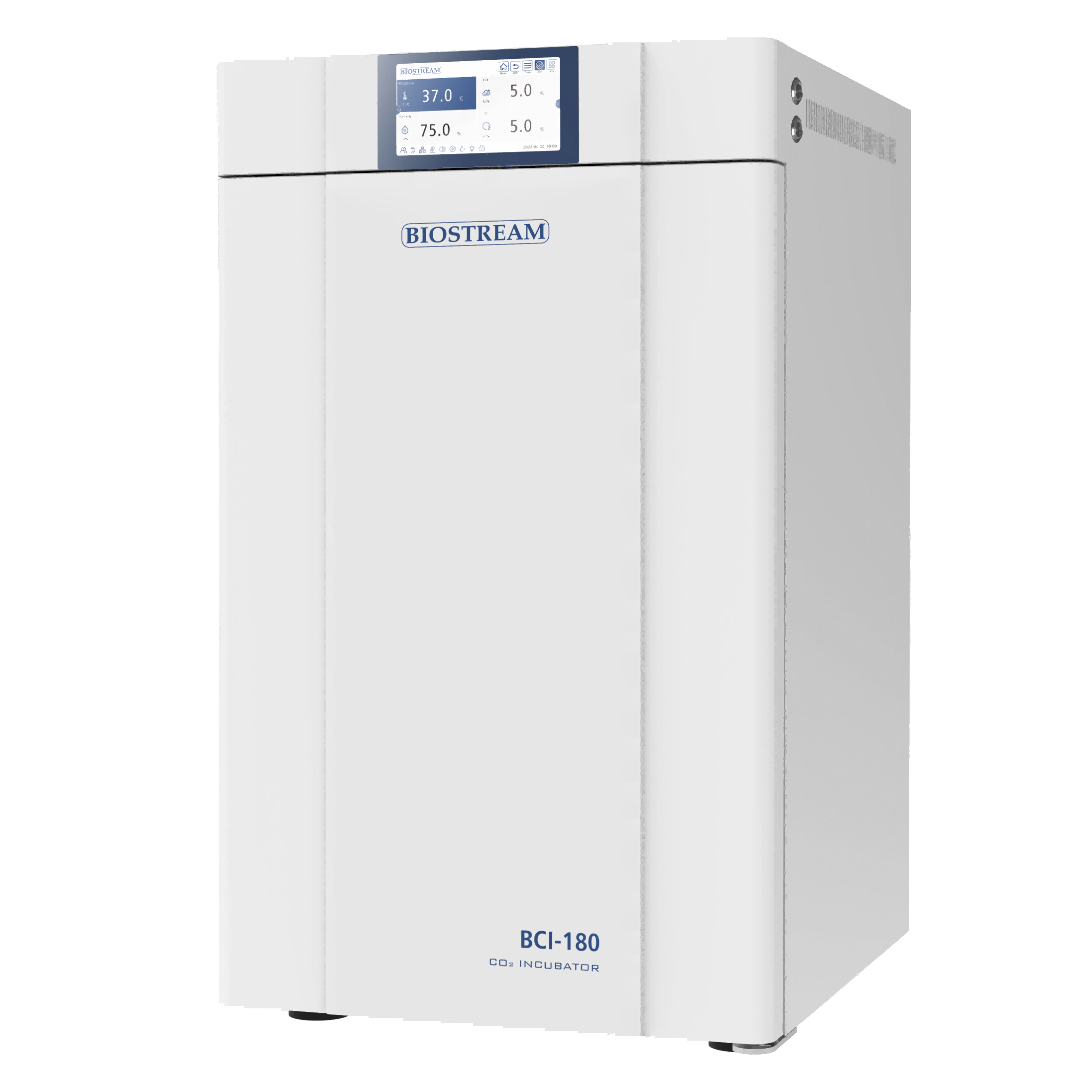

The incubator is ideal for the experiments of the cultivation of animal cells, sperm/ovum, anaerobic cells, all sorts of microbe cells, hatching/germinating and special tissues.

Features
Fast Heat-Up, Fast-Recovery, Stable Control


7-inch Touchscreen

Displays CO2 concentration and temperature data in real time. USB flash drive allows for the storage of historical data information.

6 Sides Direct Heating System
Electric heating wire is covered on all sides of the chamber which makes stable uniformity and provides fast heat-up & temperature recovery.3 parts of heating section are controlled and calibrated individually by 3 temperature sensors.

Dry Wall and Air Jacket
Warm air from heating wire is preserved in space between the chamber and the insulation layer. It helps temperature recover faster and minimize heat loss.
Dry wall withinsulation requires no regular maintenance.

Alarm System
An audible alarm is triggered when deviations in CO₂ concentration or temperature are detected.

Effective Airflow and Humidity Distribution
Excellent air circulation ensures uniform temperature distribution. The six-sided heating system, combined with a top-mounted air circulation fan, promotes efficient convective airflow throughout the chamber.

Easy to Clean
Rounded corners and a SUS304 stainless steel interior facilitate easy cleaning and maintenance.

Temperature Upper Limit Protection
In the event of temperature control failure or if the temperature exceeds the preset limit, the system automatically cuts off power to ensure the safety of both samples and equipment.

Perforated Load-bearing Shelves
Perforated shelves provide a load capacity of 50 kg per tier. The stainless steel construction offers high resistance to corrosion and contamination.

Condensation Prevention
A door heating element and the frameless design of the incubator prevent condensation formation on both the inner surfaces and the glass viewing window.

Over Heating Limit

Heating is automatically cut by safety device when temperature control fails or there is excessive heating over set point.

Perforated Shelves

Perforated shelves are good for natural air flows and are made of stainless steel which is resistant to rust and contamination.

No Condensation

Heating by front door heater & frame heater prevents condensation in the chamber and on the glass door.

Microprocessor PID Control

Intelligence Control for CO2 density, Temperature, Alarm, Automatic,Decontamination (Optional).

HEPA filtration of the chamber

Technical Parameters

Temperature Range: Ambient +5 °C to 60 °C

Temperature Resolution: 0.1 °C

Dry Heat Sterilization: Up to 125 °C

Control Method: Digital PID

CO₂ Range: 0% to 20%

CO₂ Accuracy: ±0.1% (at 5% / 37 °C)

CO₂ Resolution: 0.1%

CO₂ Sensor: Dual-beam infrared CO₂ sensor

Display: TFT touch screen

Control Panel: Touch screen operation

Jacket Type: Air jacket (six-sideds heat)

Chamber Material: Stainless steel (304)

Specifications
