Motor Variable Speed 0.5 to 400 RPM

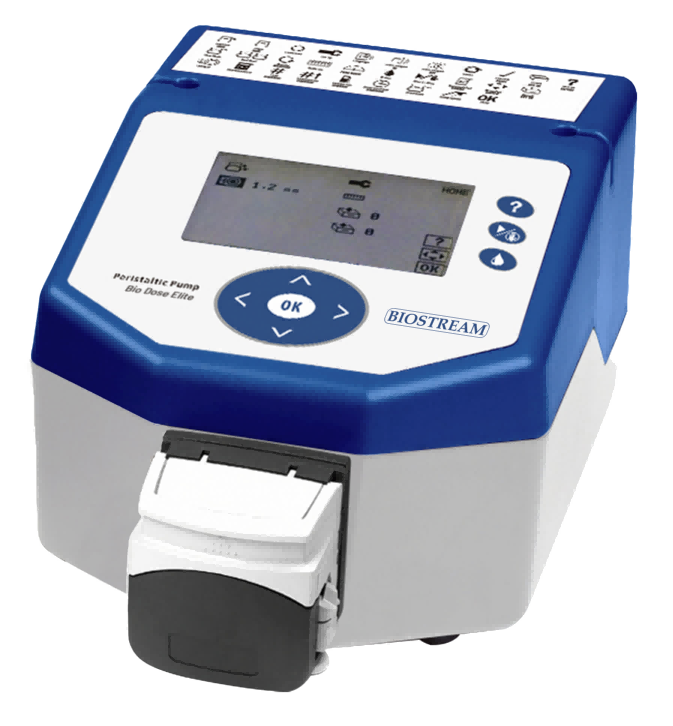

Model: Bio Dose Elite
Order NO.: B1100200
84
Specific parameters will be adjusted according to product upgrades, without notice.
Advanced Control Features
> Icon Driven User Interface allows for easy setup and operation
> Large Backlit LCD Display is easy to view from a distance
> Durable Front Overlay is resistant to chemicals
> Polarized and Angled Screen allows for glare free viewing
> “Trouble-Free” Calibration Screen allows for accurate and quick calibration
> Ultra High Precision Stepper Motor ensures repeatability and accuracy
User-Friendly Design Features
> Low Profile Design reduces space required on the bench or in a hood
> Pump Settings can be saved and recalled saving time in multi-use settings. Nine quick retrieval setups are available
> Multi-Language Help Screens: English, Chinese, Deutsch, Francaise, Japanese, Korean, and Spanish
Bio Dose ELITE Additional Features
> Multiple stacking pump heads allow for higher volumes and multiple fill applications with one pump
> Microcassette head is ideal for precision micro-dispensing of liquids in well plates, microtubes, or microcentrifuge tubes
> Works with 2, 3, 6 and 8mm tubing
> Pump allows for different ramping profiles to avoid splashing or foaming
> Accommodates a variety of dispensing and process applications
Specifications
| Model Pump | Bio Dose Elite | |||
| Modes | Dispense Mode and Flow Mode | |||
| Motor | Variable Speed 0.5 to 400 RPM | |||
| Direction | Bidirectional; Clockwise and Counterclockwise | |||
| Ramp | User Ramp Control for Dispense and Flow Modes 5 Profiles | |||
| Drawback | For Filling into a Closed Container | |||
| Pump Heads | Single, Dual, Microcassette | |||
| VAC | 100-240 | |||
| WATTS | 37 | |||
| Operating Speed RPM | 0.5-400 | |||
| Tubing Sizes Available(mm ID) | 2 | 3 | 6 | 8 |
| Dispense Ranges for Tubing mL | 0.01-9999.99 | |||
| Flow Rate Ranges for Tubing mL/min | 20.4-174 | 60-330 | 270-1080 | 200-1746 |
| Accuracy Midrange |
≤±1%
|
≤±1% | ≤±2.5% | ≤±2.5% |
| Delay Time / Sec | 0.5-99.9 | |||
| Dim. with Pumphead (HxWxD) | 18×21×34 | |||
| Optional Pump Head Support | Stack up to 2 Pump Heads Stacking Pump Head for 2.3mm Wall Tubing Pump Head for 1.6mm Wall Tubing Stacking Pump Head for 1.6mm Wall Tubing 5-Channel Pump Head for Small Bore Tubing |
|||
| Order No. | B1100200 | |||
