VIB EZ C3

Description

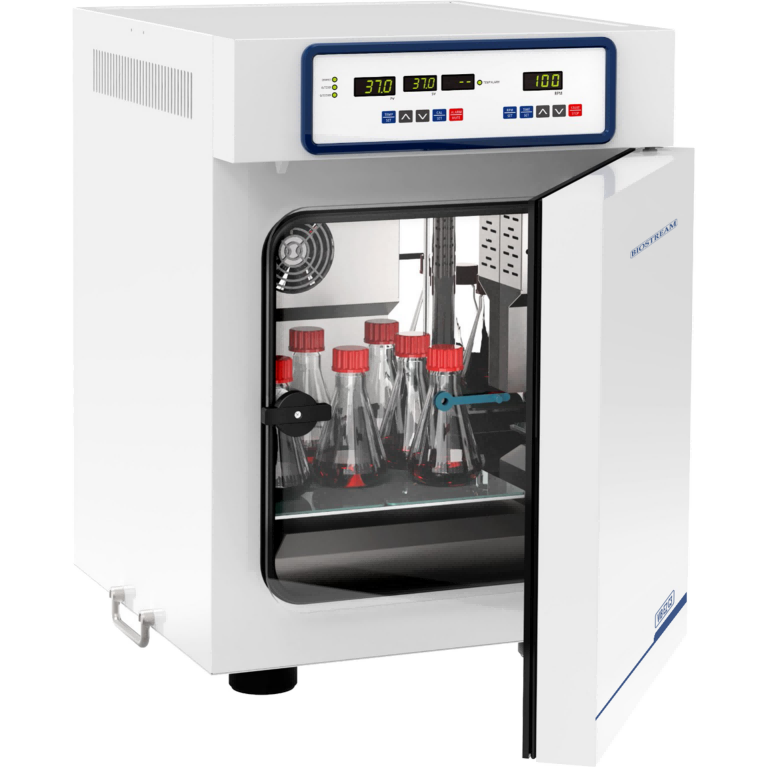

Laboratory space is both scarce and expensive. The Biostream VIB EZ C3 successfully combines flexibility, user-friendly operation and operational safety with the optimum utilization of space. Thanks to its modular construction and downwards-opening door, the Biostream BIO VIB Mini can either be a single unit for use under the laboratory bench,or operate as part of a stacked system.

Features

> The oscillation unit is embedded in the incubator and can use culture bottles with a maximum volume of 2L.

> The double-sided door design allows the door opening direction to be adjusted according to the laboratory environment for convenient operation (standard setting is left door opening at factory).

> Embedded circulation fan ensures uniformity of gas circulation and temperature field inside the box.

> Stainless steel inner cavity is easy to clean and prevent bacterial contamination.

> Alarm function is automatically activated when temperature, speed deviates or the box door is opened.

> Oscillation stops when the box door is opened. Independent safety temperature control prevents overheating.

> Peltier refrigeration technology is adopted, with compact design, lower energy consumption, no vibration and no refrigerant pollution to the environment.

Specifications

Model		VIB EZ C3
Temperature	Range of normal type Range of cooling type	RT+7℃ - 60℃ (without cooling unit, at RT25℃ ) RT-10℃- 60℃ (with peltier cooling, at RT25℃ )
	Control accuracy	±0.1℃
	Uniformity	±0.2℃(at 37℃ / RT.25℃ )
CO2	Measurement range	0 - 20 %
	Resolution	0.1 %
	Accuracy	± 1 % FS
Shaking	Speed	30-300rpm
	Control accuracy	± 1% FS
	Shaking diameter	25/50 mm
Chamber Volume		71L
Platform (w x d )		300 x 330 mm
Capacity		100ml x 16
		250ml x 9
		500ml x 5
		1000ml x 4
		2000ml x 1
Dimensions (w x d x h)	1 deck	400 x 600 x 618
Dimensions (w x d x h)	2 decks	400 x 600 x1236
Weight of each floor without refrigeration / with refrigeration		66kg / 75kg
