VIB EZ C5

Description

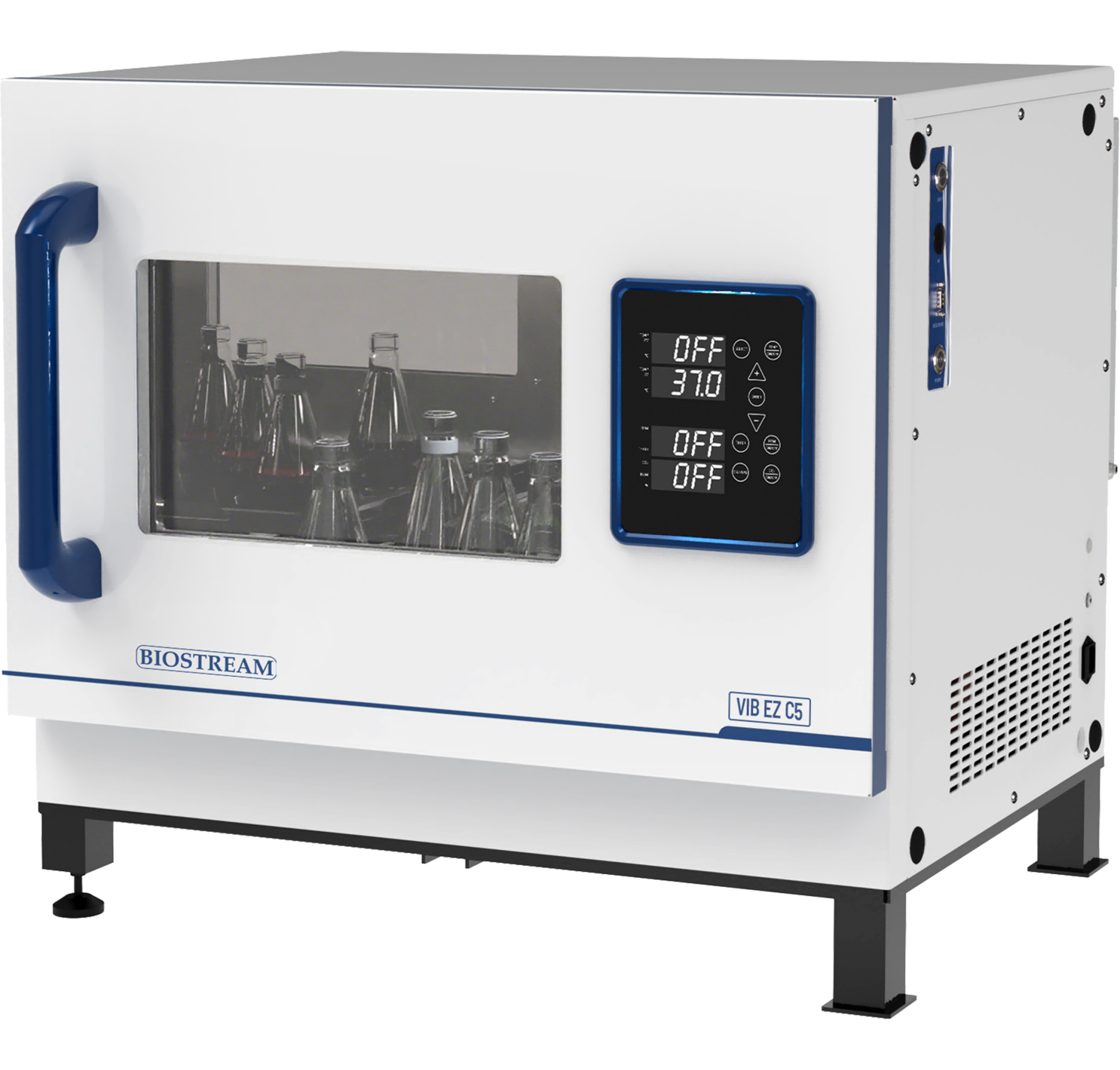

The VIB EZ C5 Shaker is designed to optimize laboratory space efficiently, offering flexibility, user-friendly operation, and enhanced safety. Its modular structure and side-sliding door allow the incubator to be used either on or under the lab bench, as well as in a space-saving double-stacked configuration.

Applications

All laboratory applications require the right shaking method and optimal incubation

conditions to ensure reliable results.

> Cell Culture

> Insect cell cultivation requires gentle and consistent agitation.

> Ideal for molecular biology applications, such as protein expression.

> Precise temperature control with optional illumination functionality.

The VIB EZ C5 features an LED display and a membrane keypad, designed for easy operation even when wearing gloves.

Specifications

Model		Biostream VIB EZ C5
Temperature	Range	RT+7℃-60℃（without cooling unit, at RT25℃） RT-5℃ - 60℃（with peltier cooling, at RT25℃） RT-15℃ - 60℃（with compressor cooling , at RT25℃）
	Control accuracy	±0.1℃
	Uniformity	±0.2℃(37℃ / RT.25℃ )
	Timer	1min~99h59min
	Program control	9-segment program control can be set
CO2	Measurement range	0 - 20 %
	Resolution	0.1 %
	Accuracy	± 1 % FS
Shaking	Speed	20-400rpm
	Control accuracy	± 1% FS
	Shaking diameter	25/50 mm
Humidity Control Range		75%-85%
Chamber Volume		160L
Platform (w x d )		450 x 450 mm
Capacity		50ml x64
		100ml x 44
		250ml x 25
		500ml x 16
		1000ml x 9
		2000ml x 6
		3000ml x 4
Dimensions (w x d x h)	1 deck	800 x 695 x 635
	2 decks	800 x 695 x1270
	3 decks	-
Weight of each floor without refrigeration / with refrigeration		Approx. 140kg / 170kg
