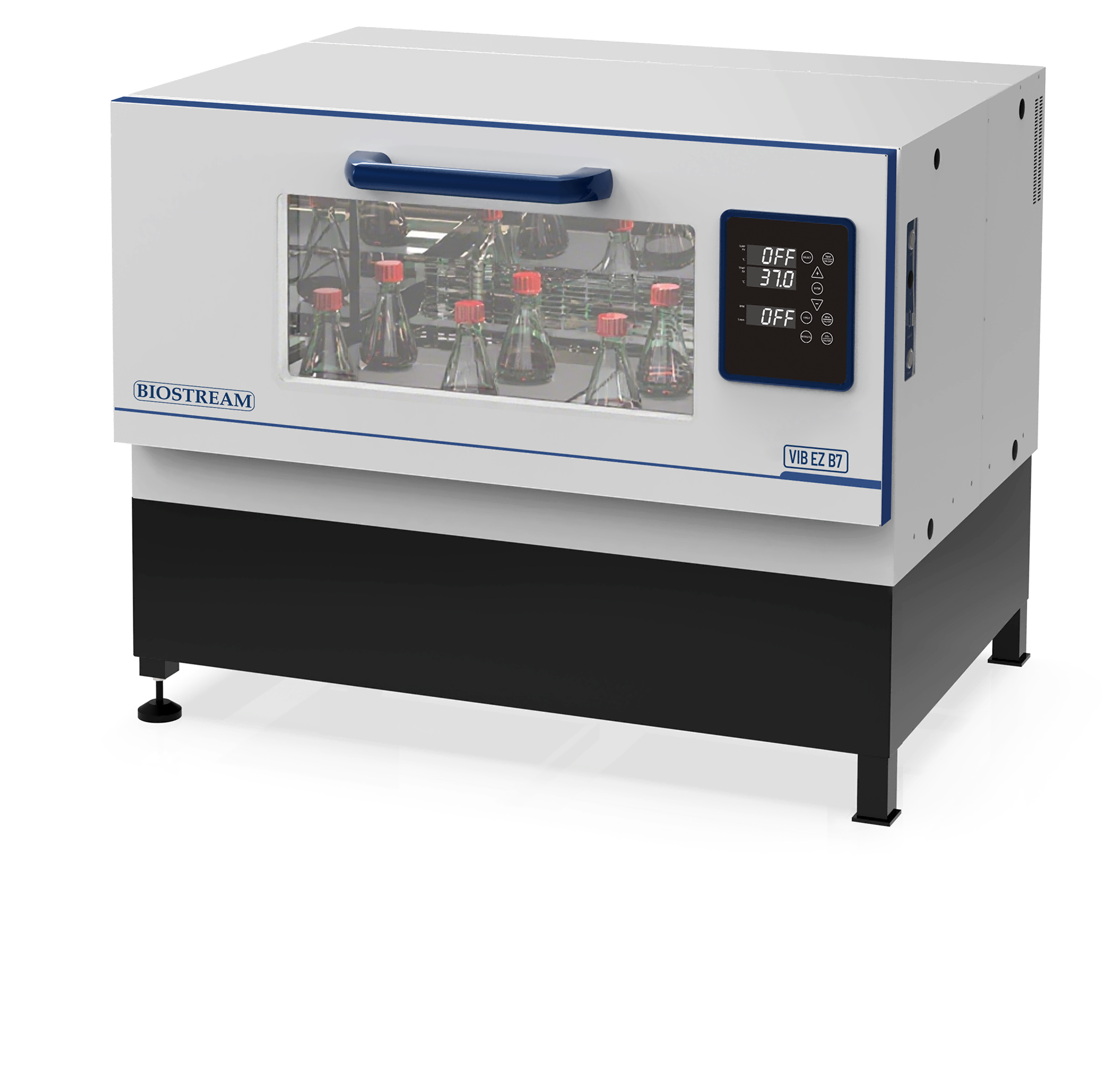

VIB EZ B7

Description

The VIB EZ B7 offers a clear concept that addresses the challenges of limited and costly laboratory space. It excels in providing flexibility, user-friendly operation, and operational safety while optimizing space utilization. Its modular design and downwards-opening door allow it to function as a standalone unit on or under the laboratory bench or as part of a stacked system.

Furthermore, the system can be easily expanded in the future to a two or three deck configuration, ensuring adaptability to

changing needs.

With the VIB EZ B7, you can achieve various tasks requiring optimum shaking motion and incubation conditions for different applications:

> Vigorous shaking for bacteria, yeast or fungi.

> Gentle and smooth action for Insect cell culture.

> Appropriate for uses in molecular biology such as protein expression.

The drop-down door

The drop-down door is cleverly designed to serve as a shelf for the pull-out

tray, adding an extra practical element. There is no additional space required

compared to a door that is split and opens from the side.

Communication

The shaker are equipped with RS232 and RS485 interface.

Specifications

Model		Biostream VIB EZ B7
Display		LED
Temperature	Range	RT+7℃- 60℃（without cooling unit, at RT25℃） RT-5℃ - 60℃ (with peltier cooling, at RT25℃ ) RT-15℃ - 60℃ (with compressor cooling, at RT25℃ )
	Control accuracy	±0.2℃
	Uniformity	±0.5℃ (at 37℃/RT25℃ )
	Timer	1min~99h59min
	Program control	9-segment program control can be set
Shaking	Speed	20-400rpm
	Control accuracy	± 1% FS
	Shaking diameter	25/50 mm
Chamber Volume		264L
Platform (w x d )		850 x 470 mm
Max Capacity (with sticky tray)		50ml x 131
		100ml x 91
		250ml x 48
		500ml x 31
		1000ml x 19
		2000ml x 13
		5000ml x 6
Optional parameters		cooling
		illumination
		UV sterilization
Dimensions (w x d x h)	1 deck	1075 x 850 x 550 (no base)
	2 decks	1075 x 850 x 1100 (no base)
	3 decks	1075 x 850 x 1795 （with 13cm base）
Weight per deck with/without cooling		180kg / 210kg
