Bio Roller Mini

< >

RPM Range 0.2~8.1rpm, Accuracy: 1rpm

Model: Bio Roller Mini

Order NO.: B6110100

1213

Specific parameters will be adjusted according to product upgrades, without notice.

Quotation Request

PRODUCT OVERVIEW

Description

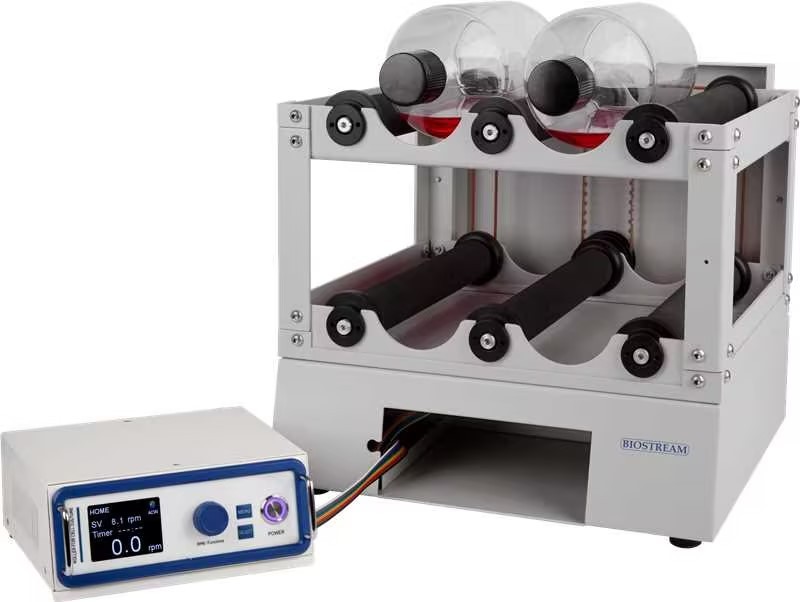

The Biostream cell culture roller rack, available in the Bio Roller Mini and Bio Roller Mid models, offers high flexibility in its operation, both inside an incubator and on a work table. A remote control box can be conveniently attached to the incubator's surface, and the flat cable does not require special installation measures like an access port. The Bio Roller Mini can accommodate up to four 2000ml bottles, while the Bio Roller Mid can handle six 2000ml bottles at a time. With a speed range from 0.2rpm to 8.1 rpm, these racks are designed to optimize the performance of adherent cell cultures.

Features

> Steel reinforced polyurethane timing belts .

> Brushless DC Motor.

> Powder coated aluminum for durability and cleanliness.

> Non-slip rubber material for the best performance of rolling.

> Designed for no idle roller by drive-belt.

Specifications

Model	Bio Roller Mini
Rpm Range	0.2~8.1rpm
Accuracy	1rpm
Increment	0.1rpm
Control	Microprocessor digital PID
Time Range	Continuous or up to 999h 59min
Accuracy	±1%
Display	LED Display
Motor type	Brushless DC motor
Standard roller bottle	110mm to 120mm, 4ea
Roller deck dimension	362（W）×299（D）×212（H）mm
Overall dimension	375（W）×370（D）×345（H）mm
Power	AC 90~264V, 50/60Hz, 10W
Weight	12.5kg
Order No.	B6110100
