This series of incubators combines heating and peltier cooling systems, a perfect development from environmentally friendly and energy efcient heating and cooling technologies that facilitate excellent control accuracy and minimal fuctuations.
Features
> Applicable in life science, pharmacy, medical science, chemistry, biology, and related fields for storage of samples which need a constant temperature and for incubation.
> Heating function start and duration can be pre-set.
> There are four temperature programs available for editing, and each program can be edited in 5 steps.
> Four temperature can be preset for quick changeover.
> Temperature measure unit can be set as either ℃ or ℉.
> When the temperature exceeds set levels and reaches the set safety value, an alarm activates, power is cut off, and the incubation process stops.
> With tempered glass window, the examination of samples is easy and convenient, avoiding unnecessary disruptions of the incubation process.
> The stainless steel shelves have a good air permeability, are easy to clean and can be adjusted in height.
> When temperature deviation occurs, the BIAS function sets in, which makes operation convenient.
> In the case of an unexpected power breakdown the incubator offers two working options: automatic re-operation and automatic stop.
> When opening the incubator, the fan and heating device stop operation. After one minute without closing the door an alarm sets in.
> Incubators use heat transfer method for circulation. In a separated room outside the work space it uses heat exchange, In the working space it uses natural convection and forced circulation.
> The circulation method will not induce air pollution and can guarantee exact temperature distribution.
Specifications
|
Model
|

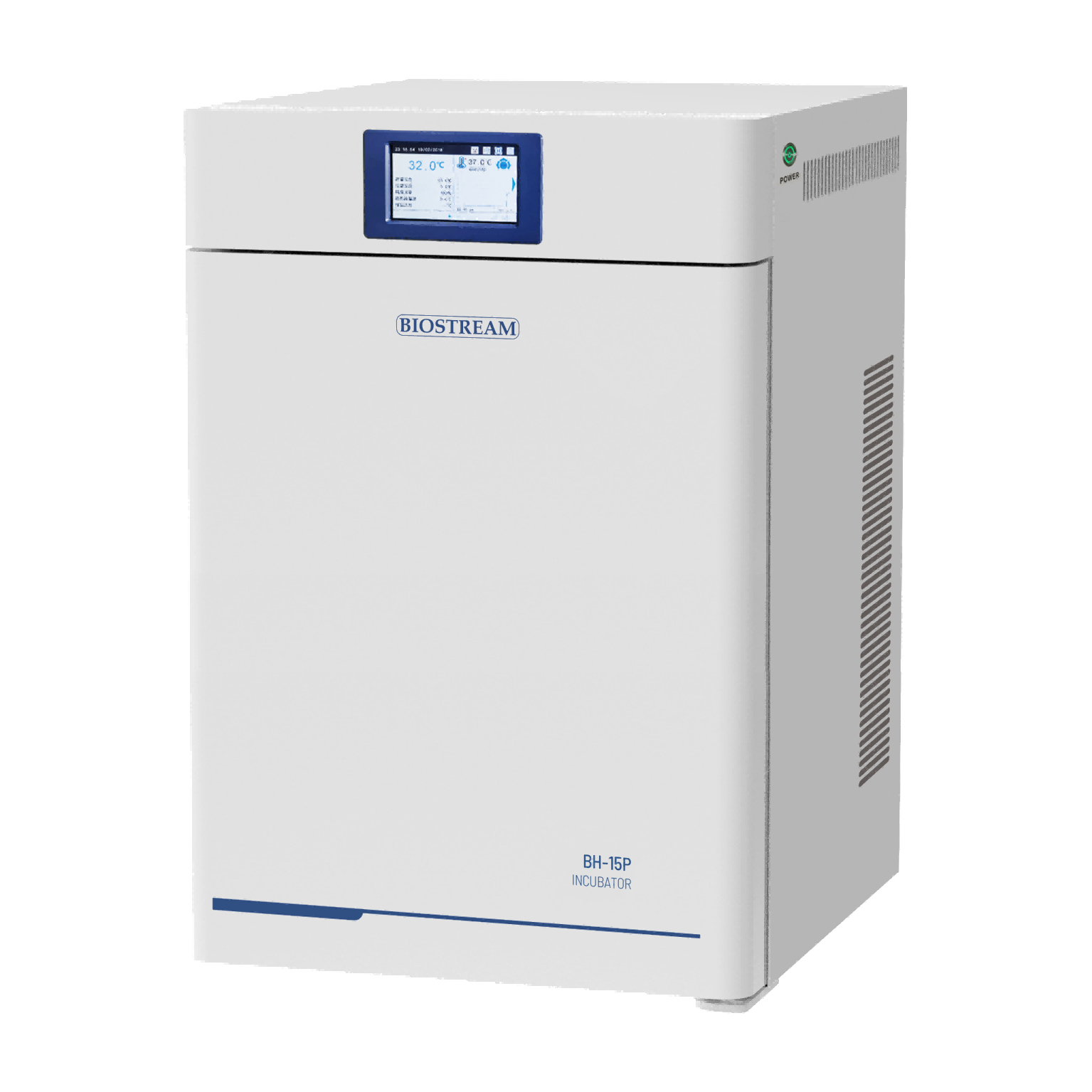

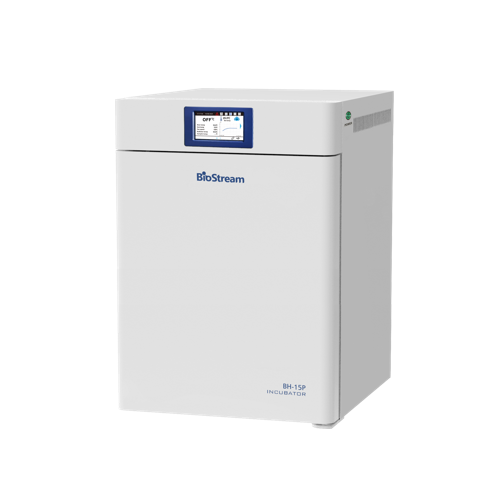

BH-15P
|
|
Order No.
|
B6053150
|
|
Volume [L]
|
150
|
|
Temperature Range [℃ ]
|
+10 ~ 60 (at 20℃ RT)
|
|
Temperature Stability [℃ ]
|
±0.1℃
|
|
Temperature Controller
|
TFT touchscreen; Digital Display with PID automatic regulation
|
|
Timer
|
1 min ~ 999hr 59 min / continuous
|
|
Heating Capacity [W]
|
450
|
|
Max. Cooling Capacity [W]
|
350
|
|
Shelves [included / max.]
|
2/10
|
|
Inner Dimensions [W×D×H in mm]
|
480 x 500 x 625
|
|
Outer Dimensions [W×D×H in mm]
|
620 x 690 x 930
|
|
Weight[kg]
|
80
|
|
Power supply
|
AC 220 ~ 240V, 50/60 Hz
|
