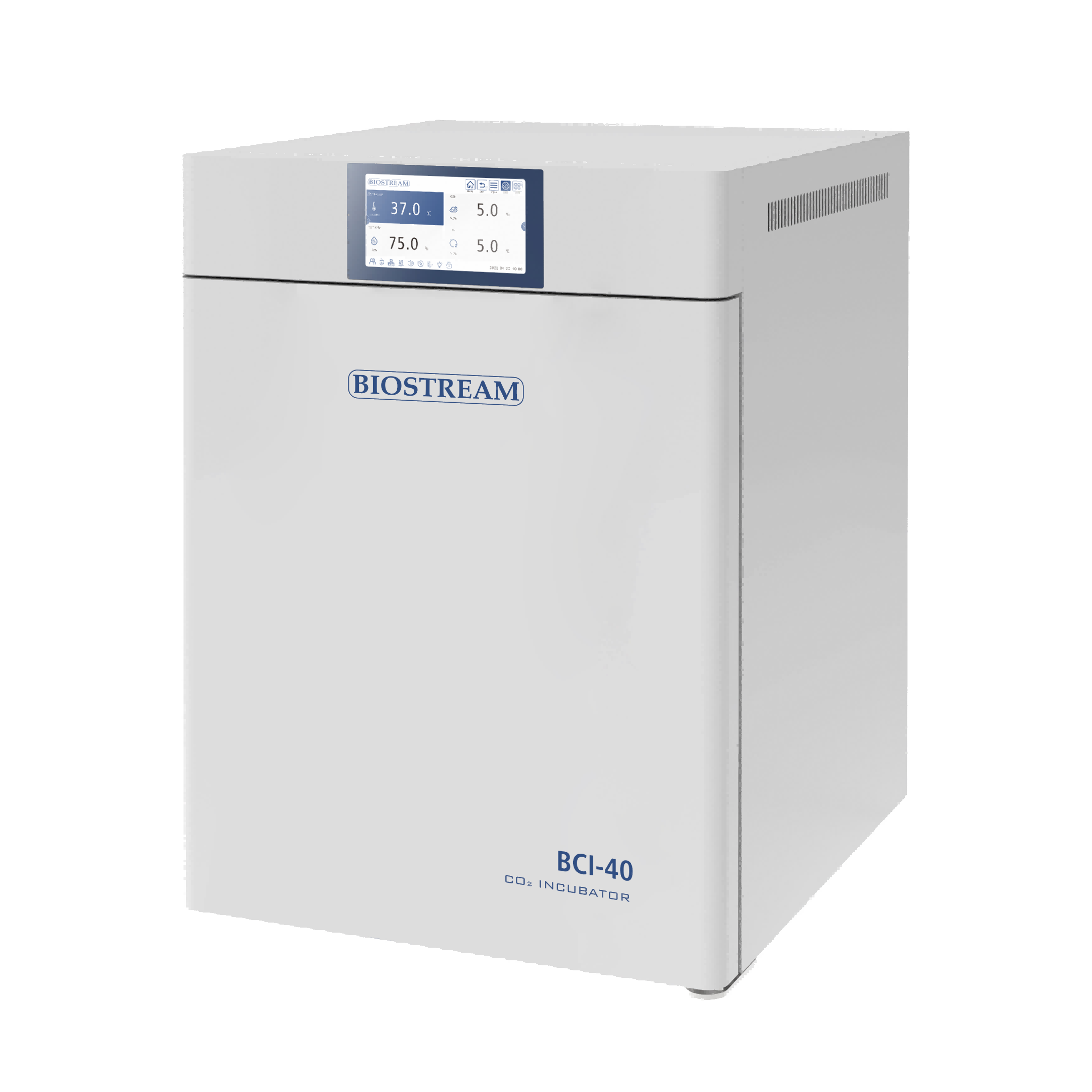

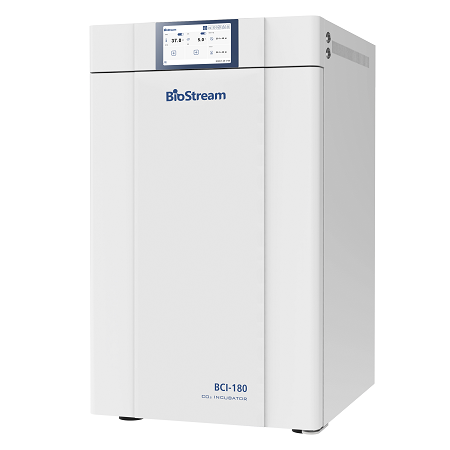

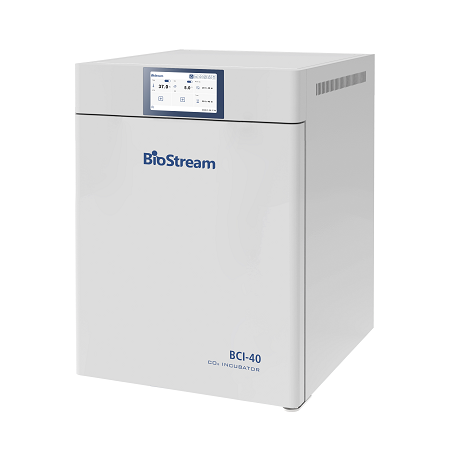

The incubator is ideal for the experiments of the cultivation of animal cells, sperm/ovum, anaerobic cells, all sorts of microbe cells, hatching/germinating and special tissues.

Features
Fast Heat-Up, Fast-Recovery, Stable Control


6 Sides Direct Heating System
Electric heating wire is covered on all sides of the chamber which makes stable uniformity and provides fast heat-up & temperature recovery.3 parts of heating section are controlled and calibrated individually by 3 temperature sensors.

Dry Wall and Air Jacket
Warm air from heating wire is preserved in space between the chamber and the insulation layer. It helps temperature recover faster and minimize heat loss.
Dry wall withinsulation requires no regular maintenance.

DUAL BEAM IR CO2 Sensor
Fast & precise detection for CO2 gas regardless of temperature and humidity.

Natural Humidification Using Water Tray
The heater on bottom side warms the water in tray and it makes humidification. The circulation fan delivers the moisture formed from the water in the entire chamber

Technical Parameters

Temperature Range: Ambient +5 °C to 60 °C

Temperature Resolution: 0.1 °C

Dry Heat Sterilization: Up to 125 °C

Control Method: Digital PID

CO₂ Range: 0% to 20%

CO₂ Accuracy: ±0.1% (at 5% / 37 °C)

CO₂ Resolution: 0.1%

CO₂ Sensor: Dual-beam infrared CO₂ sensor

Display: TFT touch screen

Control Panel: Touch screen operation

Jacket Type: Air jacket (six-sided gradient heating)

Chamber Material: Stainless steel (304)
